Goat feeding troughs for adult and lambs

Goat feeding troughs

Other goat products

We build a variety of different goat feeding troughs, that are very strong and cost effective.

The steel frames are very strong, built with 32x32 square tube and 38x25 rectangular tube. The steel frames are painted with red oxide paint and black industrial paint, to protect the steel frame against rain and other elements.

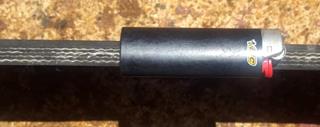

Conveyor

We only use full thickness ply conveyor, which is strong enough to carry the weight of catle. We do not use splitted conveyor.

We drill 7mm holes through the steel frame and conveyor. The conveyor is bolted to the steel frame with a 7mm bolt, 20mm washer and nut. The bolt and nut are welded together so that it will not come loose.

Goat feeding troughs with a step

Goats in the veld stand up straight when eating, even when inside a tree eating leaves. These feeding troughs allow the goats to eat their natural way.

The feeding troughs are build with a strong steel frame made of 32x32 square tube, which are painted red oxide and then with black industrial paint.

The steps on which the goats stand with their front legs, are 110x38 wood planks, painted with two coats of decking oil.

The feed troughs are 50cm wide and 90cm high. The bottom of the legs are 1,2 meters wide.

Available in lengths of
2 meters - 2,4 meters - 3 meters

See below photos and videos

Goat feeding troughs with roofs

How much feed is lost when the feed gets wet when it rain, and when the sun dry out the feed.

The roofs are one meter longer than the feed trough (50cm on each side) and 122cm wide, while the feed trough is only 50cm wide.

The roofs can be taken off the feed troughs, by removing 8x 10mm bolts.

Feed troughs available in lengths of
2 meters - 2,4 meters - 3 meters

More information, photos and videos
Goat feeding troughs with roofs

Goat feed troughs with lucerne baskets

Save money with less feed wastage.

Baskets can be taken off the feeding troughs by removing 4x 10mm bolts.

Available in lengths of:
2 meters - 2,4 meters - 3 meters

More information, photos and videos
Goat feed troughs with lucerne baskets

Goat ground feed troughs

The steel frame of these feeding troughs are built with 32x32 square.

Feed troughs are 300 high and a choice of 300 or 500 wide, with full thickness ply conveyor.

Available in lengths of
2,4m - 3m - 4m - 6 meters.

Goat lambs feeding troughs

Feed troughs are 300 high and 300 wide.

The steel frame on top of the feed trough open and close like a lid, to make it easy to throw feed in, or to clean the feeding trough.

Frame on top of feed trough can be taken off by taking out 2x 10mm bolts.

Available in lengths of
1,5m - 2m - 2,4m - 3 meters

Salt lick stands

The salt lick stands works very good, and give maximum use of the salt and other lick blocks that are used.

Stands are 430 x 430 and 150 high. At the bottom of the legs, are 10cm round bar that can be hammered into the ground.

The salt lick stands are also available with an extra steel frame, to stop the goats o pushing the salt lick block off the stand.

For more information, photos and videos
Salt lick stands

Photos of
Goat feeding troughs
(click on photos to enlarge)
