Sheep and goats water drinking troughs are built with a strong 32x32 square tube steel frame that is painted with red oxide paint and black industrial paint. Corners are cut 45 degrees and welded together for strength and prevent water getting into the frame.

Water troughs for sheep and goats are 30cm or 50cm wide and 30cm high, and available in lengths of
2,4 meter - 3 meter - 4 meter - 6 meter.

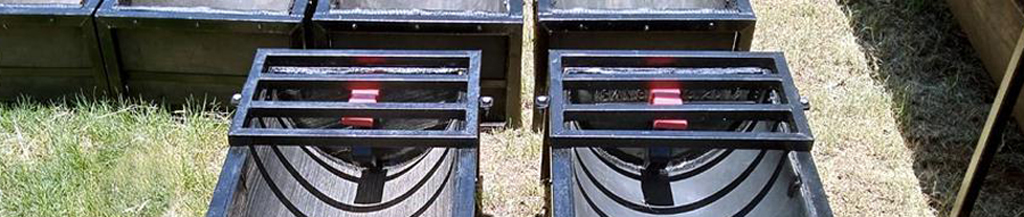

Float valve covers

Steel covers to protect inlet float valves of the livestock water troughs

The inlet float valves or ball valves are protected by a steel frame as in photo, that can be taken off the water trough by removing 2x 10mm bolts.

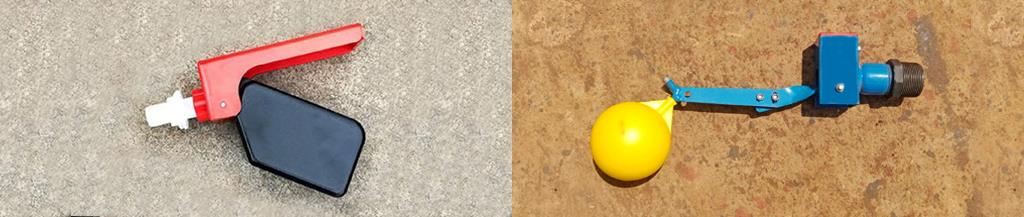

Inlet floats valves

Inlet float valves livestock water troughs

Included in the price is a plastic low pressure float valve with an inlet pipe of 20mm. See photo top left.

We also offer the option of Sweetwater steel float valves with inlet pipes of 20mm or 25mm, as well as inlet pipes of 32mm or 40mm. Photo top right. See the price list for price difference.

Many farmers would like to use inlet valves that they regularly use. For these farmers we deduct R200 from the price and the farmer buy and install the valves that they would like to use. The farmer must let us know what the inlet pipe diameter is, so that we can drill the correct size hole and build the backplate the correct size. Let us know how long the float valve is, so that we can build the steel cover to protect the float valve.

Photos
Sheep & goat water troughs
(click on photos to enlarge)
