Wildlife game feeding troughs steel frame and conveyor

A variety of very strong wildlife feeding troughs at affordable prices.

Attention is given to smaller detail, so that we can provide the farmer with the best quality feeding troughs, that is cost effective, strong and looks good on his farm.

Sheep feeding troughs are build with a strong steel frame, that is painted with red oxide paint and black industrial paint.

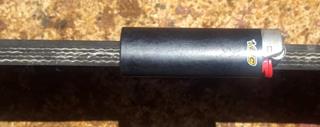

Conveyor

We only use full thickness ply conveyor, which is very strong. We do not use splitted conveyor.

We drill 7mm holes through the steel frame and conveyor. The conveyor is bolted to the steel frame with a 7mm bolt, 20mm washer and nut. The bolt and nut are welded together so that it will not come loose.

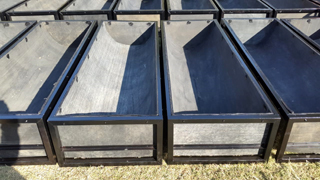

Standard wildlife feeding troughs

Wildlife game feed troughs that are 40cm high and 70cm wide

Built with a strong steel frame and full thickness conveyor.

Feed troughs are 70cm wide and 40cm high.

For small game like springbuck etc, we build feed troughs that are 50cm wide and 40cm high.

Available in lengths of
1,5 meters - 2 meters - 2,4 meters - and also 3 meters

See below photos and videos

Wildlife feeding troughs with roofs

Wildlife game feed troughs with roofs 500mm and 700mm wide

How much money does a game farmer loose with feed that gets lost due to rain and feed that dry out in the sun?

Feed trough widths: 50cm and 70cm
Feed trough height: 40cm

Roof can be taken off the feed trough by removing 8x 10mm bolts.

Available in lengths of
1,5 meters - 2 meters - 2,4 meters - and also 3 meters

See below photos and videos

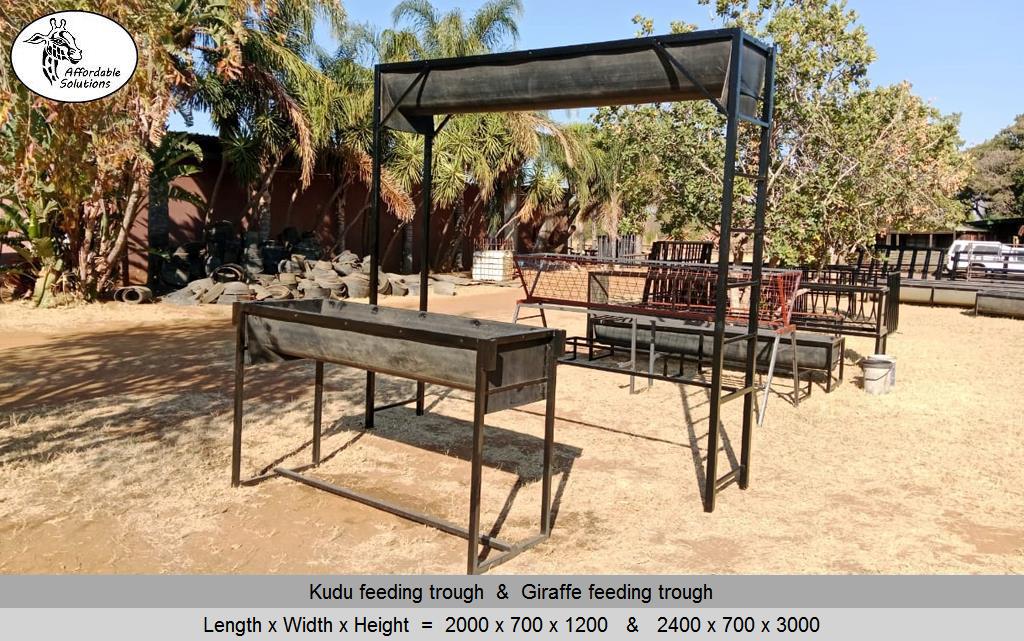

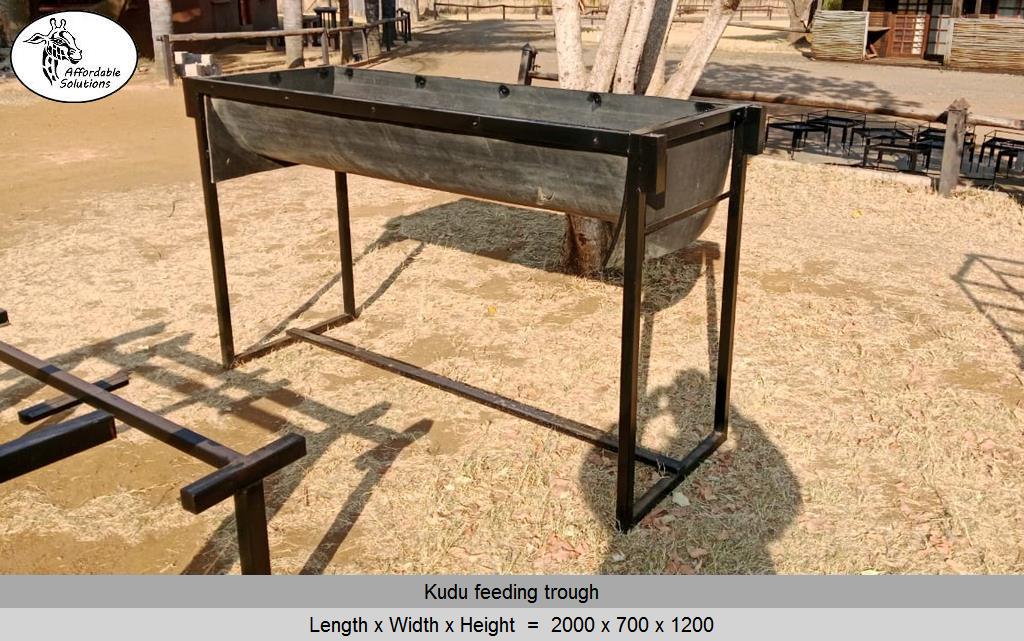

Kudu feeding troughs

It is important to feed kudu, as tannen poisoning is a reality during winter.

Strong 38x38 square tube and 50x25 rectangular tube steel frame, with full thickness ply conveyor.

The kudu feeding troughs are 70cm wide and 120cm high.

We weld 50x50 square tubes onto the corners, through which you can hammer Y-standards into the ground, stopping other wildlife of pushing the feed troughs over when trying to reach the feed.

Available in lengths of
1,5 meters - 2 meters - 2,4 meters - and also 3 meters

See below photos and videos

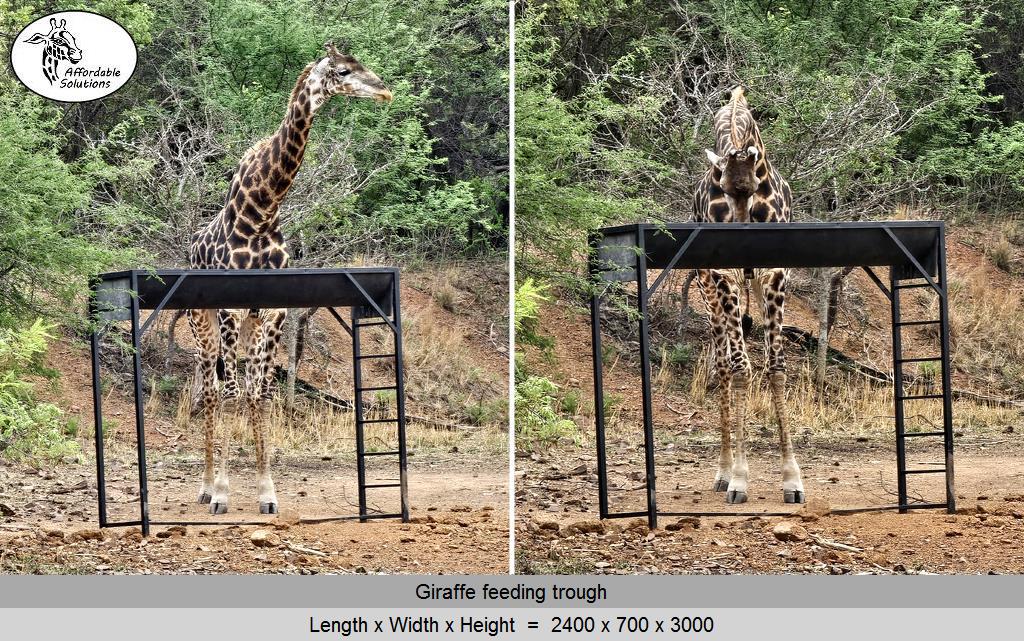

Giraffe feeding troughs

The giraffe feeding troughs are build strong with 50x50 x 2mm square tube, 50x25 x 2mm rectangular tube and full thickness conveyor.

Giraffe feed troughs are 3 meters high, of which 50cm to 70cm is cemented into the ground.

On one side we build a ladder so that people can climb up to fill the trough with feed. The steel frame and conveyor is strong enough for people to walk in the feed trough.

Available in lengths of:
2 meters - 2,4 meters - 3 meters

See below photos and videos

Wildlife feeding troughs
with dip rollers (tick control)

Game tick control feed troughs with dip rollers

Strong feed troughs with dip rollers that are effective for tick control. Built with a steel frame and full thickness conveyor.

Feed troughs with dip rollers are 500 as well as 700 wide.

Available in lengths of
1,5 meters - 2 meters - 2,4 meters - and also 3 meters

The height of the feed troughs with dip rollers are adjustable from

40cm to 70cm high
50cm to 90cm high
70cm to 120cm high

For more information, photos and videos
Wildlife feed troughs with dip rollers

Salt and game lick stands

The salt lick stands works very good, and give maximum use of the salt and game lick blocks that are used.

Stands are 430 x 430 and 150 high. At the bottom of the legs, are 10cm round bar that can be hammered into the ground.

The salt lick stands are also available with an extra steel frame, to stop the sheep of pushing the salt lick block off the stand.

For more information, photos and videos
Salt lick stands
