Sheep feeding trough with steel frame and conveyor
Sheep feeding troughs

Other sheep products

We build a variety of different sheep feeding troughs, that are very strong and cost effective.

Attention is given to smaller detail, so that we can provide the farmer with the best quality feeding troughs, that is cost effective, strong and looks good on his farm.

Sheep feeding troughs are build with a strong steel frame (32x32 square tube) , that is painted with red oxide paint and black industrial paint. The conveyor is full thickness conveyor that is bolted to the steel frame. The bolts are tightened with nuts and then welded together so that it will not come loose.

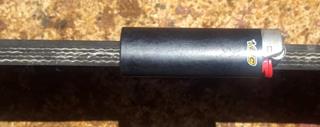

Conveyor
Full thickness ply conveyor used in feeding troughs

We only use full thickness ply conveyor, which is very strong. We do not use splitted conveyor.

We drill 7mm holes through the steel frame and conveyor. The conveyor is bolted to the steel frame with a 7mm bolt, 20mm washer and nut. The bolt and nut are welded together so that it will not come loose.

Sheep feeding troughs 500mm wide
Sheep feed troughs that are 30cm high and 50cm wide

Width:   500mm  (50cm)
Height:  300mm  (30cm)

Strong 32x32 square tube steel frame
Full thickness ply conveyor

Available in lengths of
2,4 meters - 3 meters - 4 meters - and also 6 meters

See below photos and videos

Sheep feeding troughs 300mm wide
Sheep feed troughs 30cm high and 30 wide

Width:   300mm  (30cm)
Height:  300mm  (30cm)

Strong 32x32 square tube steel frame
Full thickness ply conveyor

Available in lengths of
2,4 meters - 3 meters - 4 meters - and also 6 meters

See below photos and videos

Sheep feeding troughs with roofs
Sheep feed troughs with roofs 300mm high and 500mm wide

Feed trough width:   500mm  (50cm)
Feed trough height:  300mm  (30cm)

Strong 32x32 square tube steel frame
Full thickness ply conveyor

Roof can be taken off the feed trough by removing 8x 10mm bolts.

Roof is 1,2 meters wide and 1 meter longer than the feed trough.

Available in lengths of
2,4 meters and 3 meters

Information, photos and videos:
Sheep feeding troughs with roofs

Sheep feed troughs
with lucerne baskets
Sheep lucerne feeding troughs

Save money with less feed wastage.
Feeding troughs with lucerne baskets have up to 70% less feed waste.

Feed trough width:   500mm  (50cm)
Feed trough height:  300mm  (30cm)

Strong 32x32 square tube steel frame
Full thickness ply conveyor

Baskets can be taken off the feeding troughs by removing 4x 10mm bolts.

Available in lengths of:
2 meters  -  2,4 meters  -  3 meters

More information, photos and videos
Sheep feed troughs with baskets

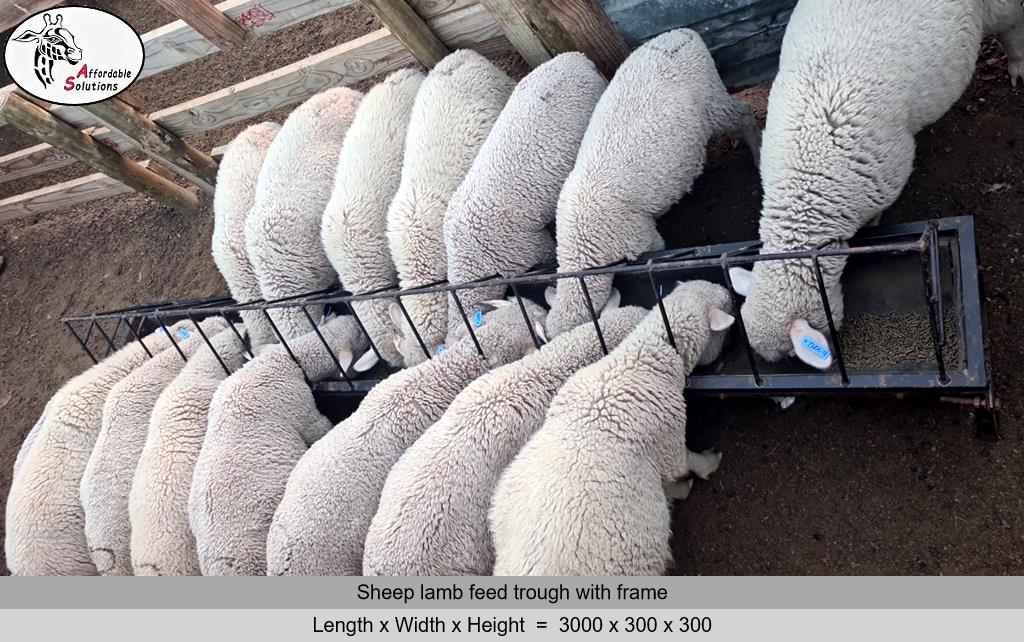

Lambs feeding troughs
Lambs feed troughs with steel frame

Feed trough width:   300mm  (30cm)
Feed trough height:  300mm  (30cm)

Steel frame on top of the feed trough open and close like a lid, to make it easy to throw feed in and to clean the feeding trough.

Frame on top of feed trough can be taken off by taking out 2x 10mm bolts.

Available in lengths of
1,5m - 2m - 2,4m - 3 meters

See below photos and videos

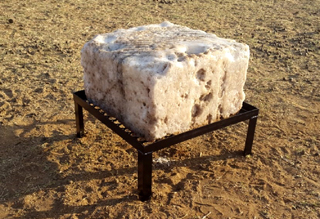

Salt lick stands
Stands for salt lick blocks

The salt lick stands works very good, and give maximum use of the salt and other lick blocks that are used.

Stands are 430 x 430 and 150 high. At the bottom of the legs, are 10cm round bar that can be hammered into the ground.

The salt lick stands are also available with an extra steel frame, to stop the sheep of pushing the salt lick block off the stand.

For more information, photos and videos
Salt lick stands
Photos of
Sheep feeding troughs
(click on photos to enlarge)
Videos of
Sheep feeding troughs
Sheep feed and water troughs
Video length = 31 seconds
Feeding trough for sheep lambs
Video length = 47 seconds
Building sheep feeding troughs
Video length = 28 seconds
How we build feeding troughs
Video length = 1 minute 28 seconds
Sheep feeding troughs and water troughs
Video length = 1 minute 16 seconds
Video from client - Sheep eating from feed troughs built by us
Video length = 34 sekondes
Sheep lambs feeding troughs
Video length = 62 seconds
Sheep feeding trough with basket for lucerne or grass
Video length = 41 seconds
Sheep feeding troughs with baskets
Video length = 38 seconds
Sheep feed trough with basket
Video length = 20 seconds
