Sheep lambing pens and kraal panels

Sheep lambing pens and kraals

sheep, goats, panels, lambing pens, lamb pens, kraals, passages

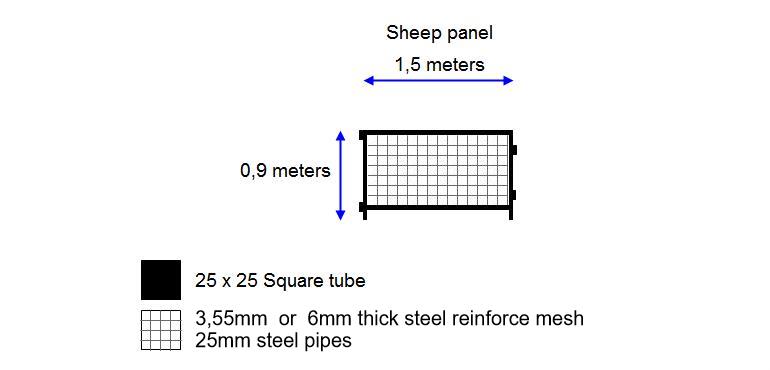

The sheep lamping pens and kraal panels, are build with 25x25 square tube. The square tube is much stronger than the more commonly used 19mm round tube.

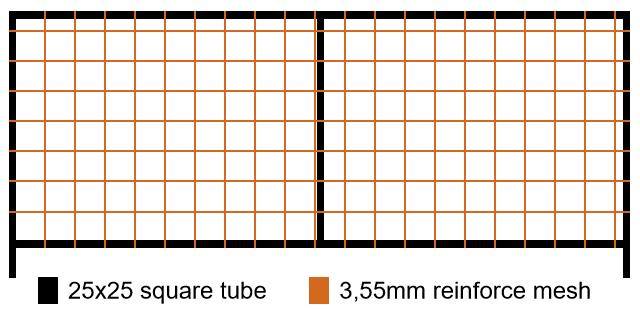

Instead of using horisontal pipes inside the frame, we use reinforce steel mesh with openings of
10cm x 10cm. The steel of the reinforce mesh is 3.55 mm thick steel that is strong and every end is welded to the steel frame with strong welds. The reinforce mesh 10cm x 10cm openings keeps the lambs in the pens, and unwanted creatures out of the pens or kraals.

The gap from the ground to the bottom of the steel frame is 10cm. The vertical square tube of the frame, has 10cm foot pieces so that the panels do not lie on the ground. The foot peices are boxed (closed) at the bottom with steel pieces.

The nooses that the 10mm roundbar goes through to join the panels, are also 25x25 square tube. It is neat, but most important it is stronger than traditional flat bar nooses. The square tubes are welded all around to ensure it will never break off.

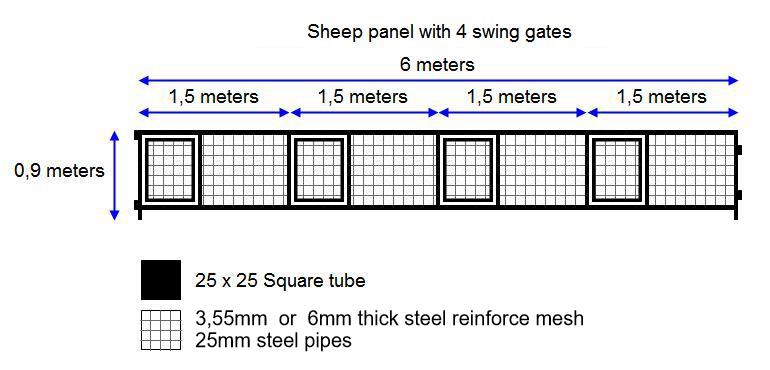

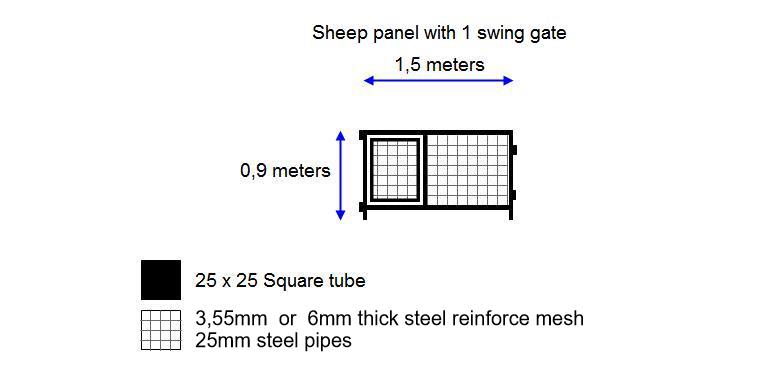

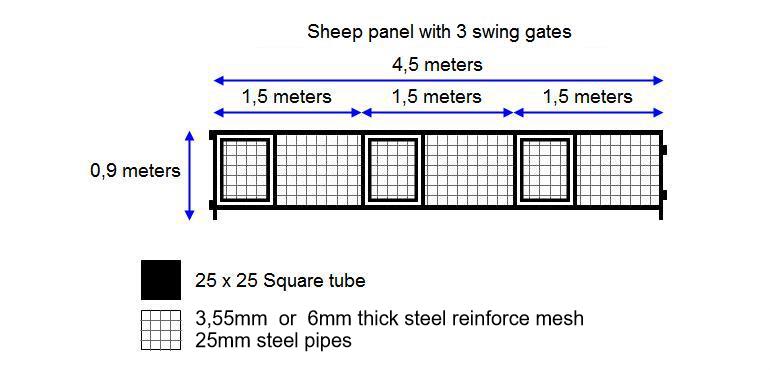

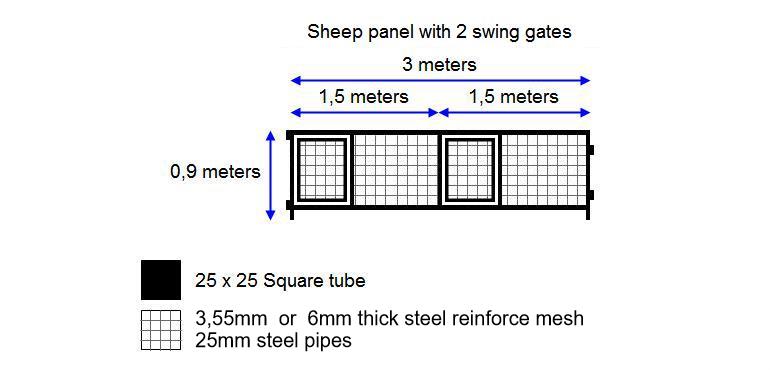

The panels are available with or without a swing gate (see photos further down in this page). The swing gates works very well, but the farmer can still open the pen the traditional way by using the panel as a gate, to let his/her sheep or goats into or out of the pens or kraals.

Panels for sheep are 900 (90cm) high.

The panels are painted with two coats red oxide paint, and then with two coats of black industrial paint.

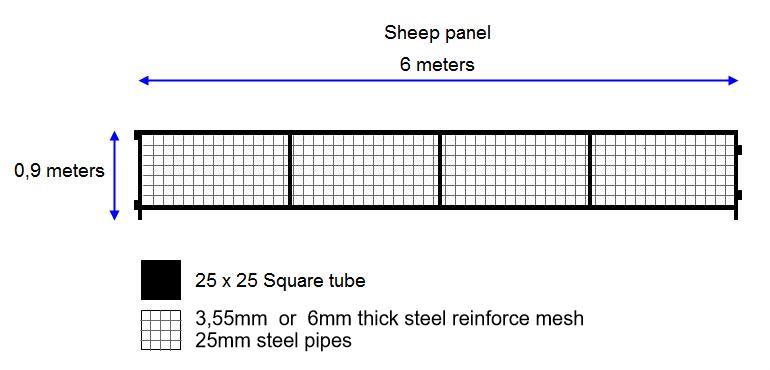

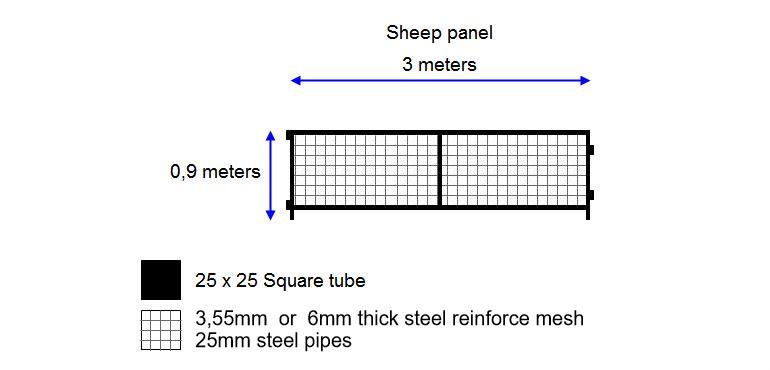

Sheep panels are available in lengths of:
1.5 meters - 2 meters - 3 meters - or any size that the farmer prefer.

Price list
Click here to download

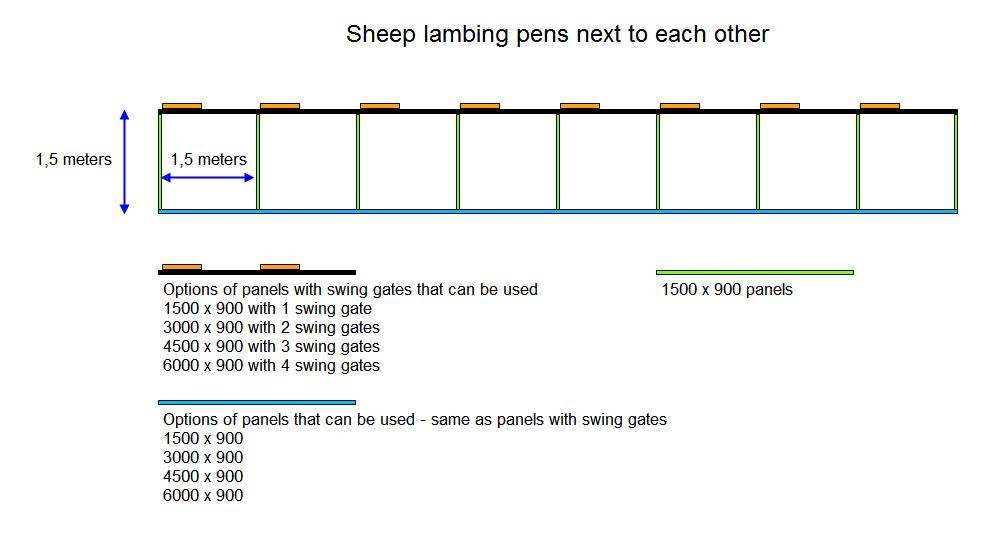

Examples of different lambing pens layouts
The panels in the layouts are 1,5 meters long, but panels of any length can be used
