Goats lambing pens and kraals

We build the goats lambing pens, kraals and chute passages (druk gange) panels with 25x25 square tube, which is much stronger than pipe (round tube).

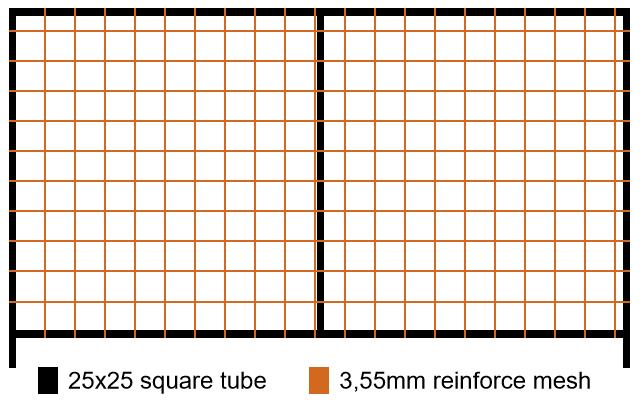

Instead of using horisontal pipes, we use reinforce mesh with openings of 10cm x 10cm. The reinforce mesh steel is 3,55mm thick and welded strong against the steel frame.

The opening from the ground to the horisontal square tube is 100mm (10cm). The legs of the steel frame are boxed welded with steel plate to prevent water getting into the steel frame.

The nooses where the 10mm round bar (included) go through to join the panels together, are 25x25 square tube. It looks very neat and are welded all around so that the noose will never break off. There is much less play with the 10mm round bar, and the panels are connected stronger.

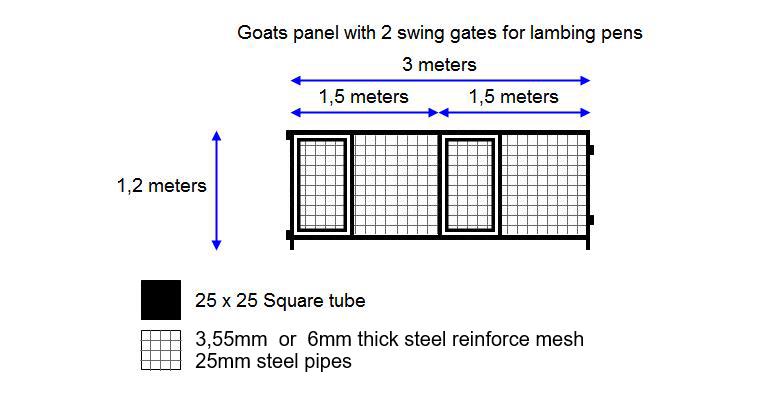

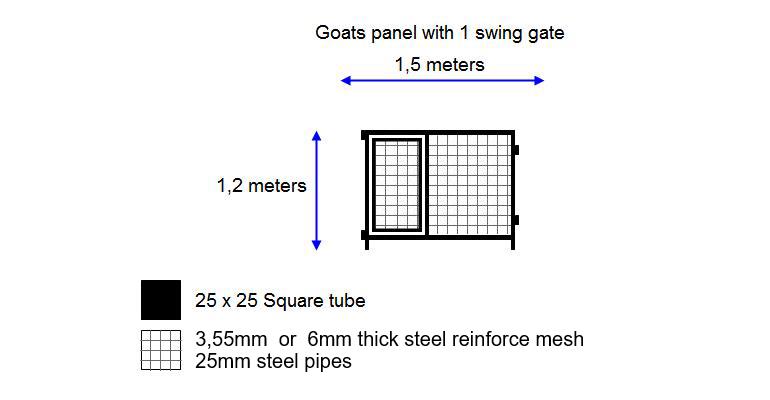

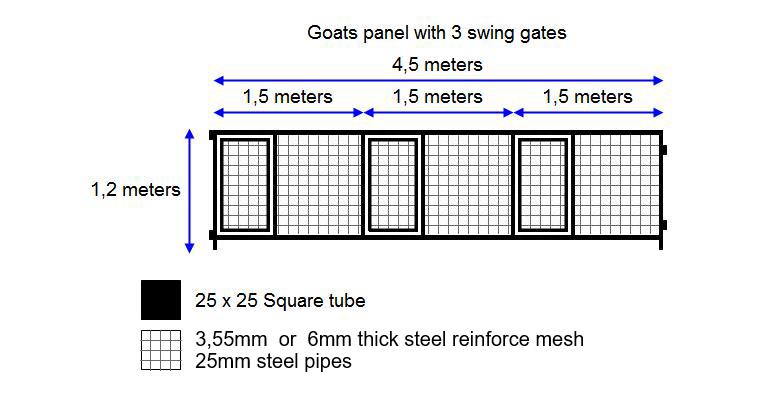

The panels are avilable with or without swing gates - see photos and videos further down in this page. The swing gates work very well and makes it easy to manage the ewes and their lambs.

Panels for goats are 1200mm (120cm) high.

The steel panels are painted with two coats red oxide paint, and then with two coats black industrial paint.

Kraal can be made larger by adding more panels
Video length = 19 seconds

Photos of goats lambing pens, kraals etc
Click on photo to enlarge

Videos of goats lambing pens, kraal etc

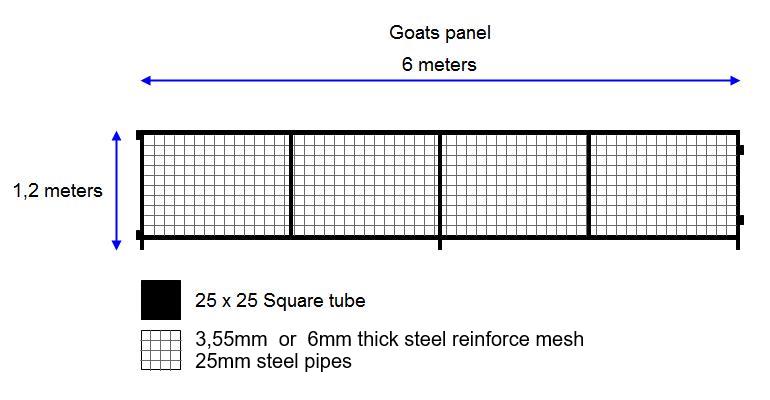

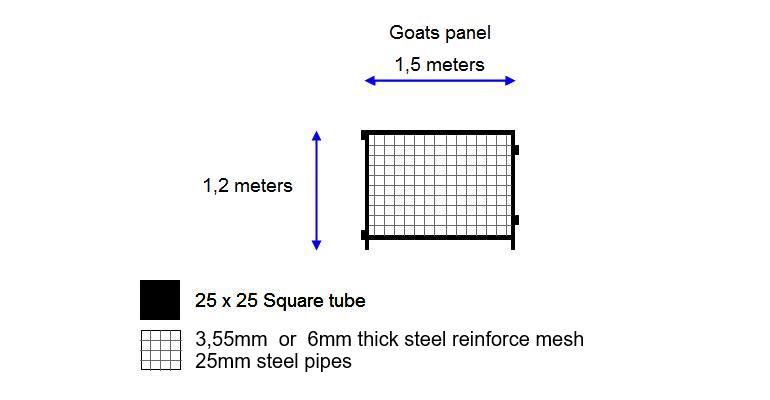

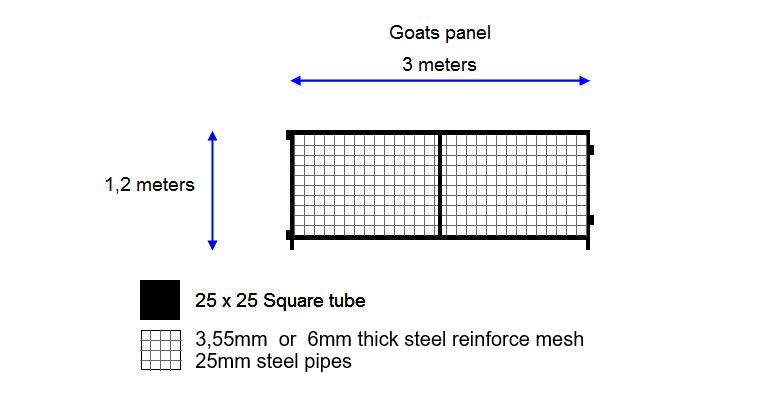

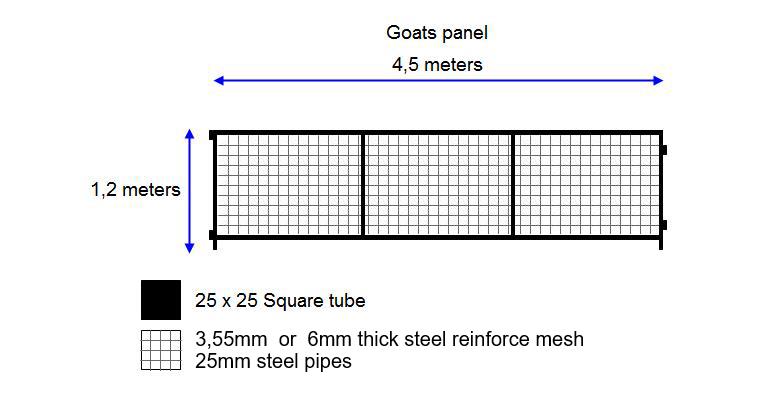

Lengths that the goats panels are available in:
1.5 meters, 2 meters, 3 meters and 6 meters - or any length and height that the farmer prefer.

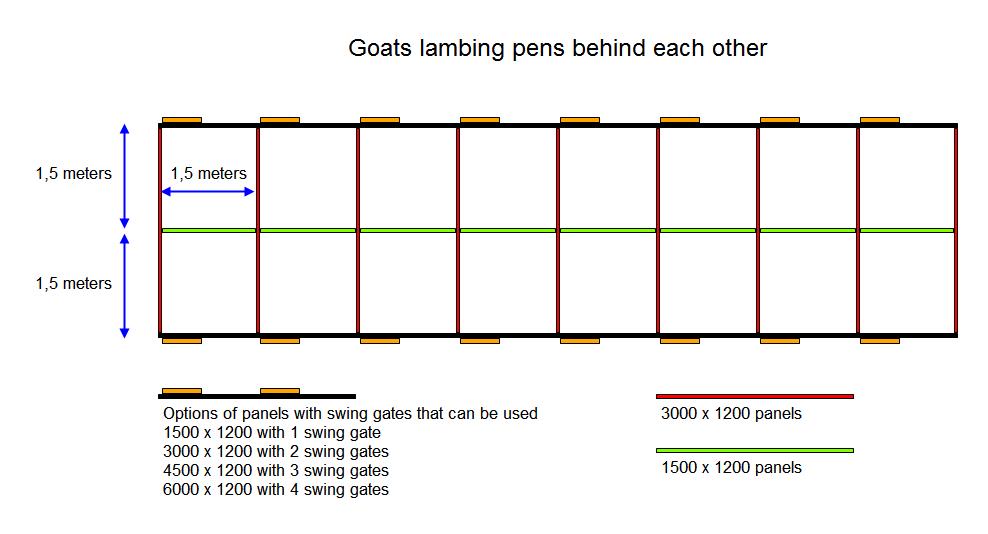

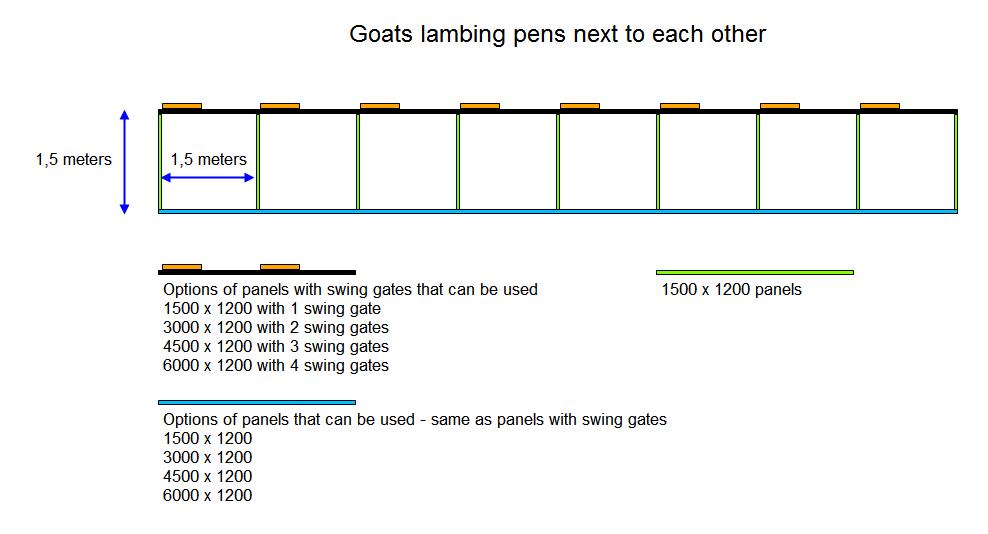

Examples of different lambing pens layouts
The panels in the drawings are 1,5 meters long, but any length can be used

Goat pen or small kraal - 3 meters x 3 meters
Video length = 1 minute 13 seconds

Goats lambing pens - back to back
Video length = 48 seconds

Goats lambing pens - 1,5 meters x 1,5 meters
Video length = 32 seconds

Sheep lambing pens, kraals etc - Click here

Other goats products

Goats foot dip spray race tunnel

Goats foot dip

Goats work stations

Price list
Click here to download
